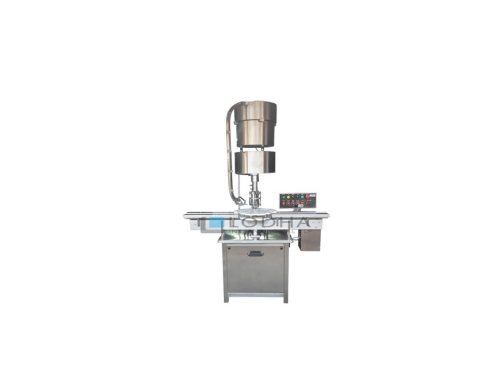

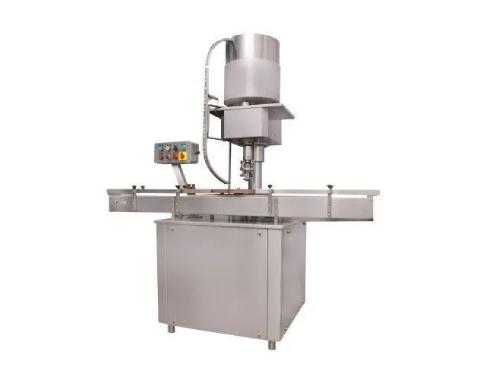

Amar Automatic ROPP Cap Sealing Machine (Single Head)
The Amar Automatic ROPP Cap Sealing Machine is a cutting-edge solution for reliable and efficient capping operations. Designed to handle round, square, and flat containers, this machine integrates advanced sealing technology with user-friendly features to ensure seamless performance. Its stainless steel construction, compact design, and precision engineering make it a trusted choice for pharmaceutical, beverage, and cosmetic industries.
Streamlined Operation
The automatic conveyor positions containers into the star wheel, aligning them accurately under the sealing head. Simultaneously, caps are fed through the delivery chute from the cap feeding bowl. The sealing head executes precise threading and sealing, ensuring uniform results for containers of varying sizes.
Key Features
Technical Specifications
| Specifications | Details |
|---|---|
| Output/Hour | 1000 to 3000 bottles |
| Direction of Movement | Left to Right |
| Sealing Head | 1 Nos. |
| Cap Diameter | 19 mm to 38 mm |
| Cap Height | 15 mm to 18.3 mm |
| Container Compatibility | – Round: Ø22 mm to Ø100 mm, Height: 58–240 mm |
| – Flat/Square: Length: 15–100 mm, Width: 10–50 mm, Height: 58–240 mm | |
| Power Requirements | 1 HP (Main Motor), 300 W (Cap Feeding Bowl) |
| Conveyor Height | 860 mm to 910 mm adjustable |
| Machine Dimensions | 1525 mm (L) x 850 mm (W) x 1900 mm (H) |
| Net Weight | 350 kg |
| Gross Weight | 550 kg |
